Very useful for fleshing out ideas, especially when needing to communicate with others on the other side of the world. However, I probably don't want to write up everything just yet. It might change as I do more research and user testing.

1. Product description
2. How the product works
3. Why the product is needed
4. Product features
5. If software is included, what does it do and how does it work?
6. Who is the product for?
7. How big is the market?
8. What competition is out there, how does it compare?
9. Where the product will be wold
10. What price the product needs to sell for
11. What profit margins are required for the product
12. How the product will be serviced and supported
13. The estimate of the product sales volume

1. Description of the product, how it works, how it is used
2. Description of controls switches, lights, displays and ports
3. Software details
4. Physical attributs: size, weight, and so on
5. Environmental requirements (temp, humidity)
6. Physical conditions (shock proof, inside and outside of packaging)
7. Quality requirements (how many and what type of defects are allowed, testing)
8. Regulatory agencies and requirements the product must meet

• Must work on uneven and slanted surfaces. Not wobble / feel loose too much

^ “Algorithm” ^ Result ^

Much easier….

All epoxy resins eventually degrade.

Polyester resins…don't they smell really bad during mixing? They are cheap and readily available though.

• https://www.tapplastics.com/product/mold_making_materials/casting_products/tap_clear_lite_casting_resin/75 or surfboard resin: https://www.tapplastics.com/product/fiberglass/polyester_resins/tap_surfboard_resin/38

Fancy Innovative Plastics is super expensive. Clear OC-7086 is 100 for quart, 250 for gallon. 100 250

44.31 112.12

Pressure pot conversion parts: https://youtu.be/5jOttgLQvpA?t=116

• Harbor Freight:
  • 1/4 inch Ball valve
  • 3/8 to 1/4 inch adapter
  • 1/4 inch 4 piece air hose adapter set
• Lowe's
  • 1/4 inch female to female elbow
  • 1/4 inch cap

Might replace wing nuts with normal bolts? https://www.youtube.com/watch?v=GA1c3Jodz1s

• Or 3d printed part? https://www.myminifactory.com/object/3d-print-127405

Grainger plastic sheet stock search: https://www.grainger.com/category/raw-materials/plastics/plastic-sheets-and-film?attrs=Plastic+Length%7C12%22~~Plastic+Thickness%7C0.06%22%7C0.063%22~~Plastic+Width%7C12%22&filters=attrs&sortKey=price&sortOrder=asc

Art n Glow Art Epoxy Resin

* In cold weather epoxy will just stop curing until warmed up again. Nice!

Talcum powder in mold is good mold release and bubble buster, apparently.

Can do vacuum pump cheap, maybe try actual vacuum first and see what it's like cheaply? Otherwise there's pumps like this. https://hackaday.com/2019/12/19/degassing-epoxy-resin-on-the-very-cheap/

Make a mold out of thin vinyl or stiffer silicone sheet? Or piece of stiff HDPE laundry soap jug. Might want to try that and hdpe cutting board and compare them. I feel like the sheet will not be reusable perfectly if you bend on removal (maybe if you peel with knife), but the cutting board

• Clear tape to do first seal of edges, but might want to add hot glue too. Heat hot glue to remove panels easier?
• YouTube Link! https://www.youtube.com/watch?v=QxXEMJwCxEU

AliExpress has been great. Slow (3 weeks max) but free (for now) shipping!

Pre-done 2000mah as cheap as $4.50 in quantity and labeling w/ free shipping. .

• UL certified from same company is more:

https://quinled.info/2019/01/21/ip20-vs-ip65-vs-ip67-waterproof/

IP67 = annoying silicone sheath. Abrade with 180-330 grit sandpaper or 3m 7447 pad in circles, then clean with isopropyl alcohol 50-70%, then maybe a primer?

• 3M VHB Tape Universal Primer UV. SDS says Heptane and Methyl Acetate plus some non-volatile polymeric components. 3m_vhb_tape_univ_primer_uv_sds.pdf
• Also buying cool video primer. https://www.alibaba.com/product-detail/Silicone-3M-tape-primer-for-adhesive_62001676804.html?spm=a2700.details.maylikehoz.5.7b0c5134jUxJhr. YouTube Link! https://www.youtube.com/watch?v=0JHlrvJOmC8.
  • MSDS says silicone, methanol, and toluene: cl-14a-msds.pdf. Wonder why 3M isn't using it…

IP65 = Is it silicone as well? Supposedly comes with tape already, we'll see how well it performs.

Great company so far, seem to want to do custom stuff easily. Not sure on prices, but they are probably reasonable. http://www.cpcdoesadhesivesandtapes.com/id33.html

Nothing really sticks to silicone. Best you can get is surface tension. The bigger the strip of silicone, the more area to provide surface tension. Goop works. Scuffing the silicone strip and the plastic with 220 grit sandpaper will help. Clean the silicone with a solvent and allow to dry. Apply thin layer of goop to both gluing surfaces, allow glue to dry a bit and then assemble. So long as you're not asking the silicone to support movement, the joint will hold.

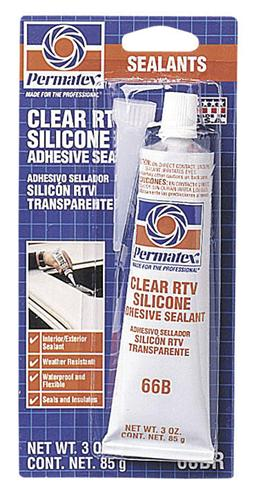

RTV Silicone is the only stuff other than more expensive Loctite Plastics System (cyanoacrylate). https://forums.adafruit.com/viewtopic.php?f=8&t=26326#p199325

• 66B or 80050

Was able to successfully burn out the diode! Let's try again with ~1A instead of more than that. I think most users will be ok with dimming the patterns / picking lower-brightness patterns if they want more leds than 100.

5V output from arduino didn't make a noticeable brightness change, probably because resistor on led strip limited led current.

However, for driving more LEDs brightly, you'll want a model with level shifters for doing the data pins. Now, how to do it…

There are level shifters that tap out around 2MHz, but only need 800Khz for cheaper led strips.

What about voltage drop on longer strips?

All I have ordered so far are good.

The latest one from AliExpress had slightly less long black parts on the trailing end, but I don't think that matters. Has a lingering smell to it though. Also was quite cheap.

• Pre-wire V_ALT and n-fet if people request it?

Aliexpress has some 4000mah batteries for $9.

Maybe do a magnetic cable from a 12V battery with usb plugs? https://www.aliexpress.com/item/4000077722049.html?spm=2114.search0302.3.10.18595756W5aofK&s=p&ws_ab_test=searchweb0_0,searchweb201602_0,searchweb201603_0,ppcSwitch_0&algo_pvid=be82760d-1cd7-4aaf-9908-42a644bb8fd8&algo_expid=be82760d-1cd7-4aaf-9908-42a644bb8fd8-1

Awesome, just use a car jump starter. A little bulky

• Maybe not charging on USB is ok. It's infrequent.
• $80 at harbor freight for 12000 Mah.

If don't do a jump start battery, can get $30 battery pack when reducing capacity down to 3000mah.

“Is it Legal?”. Notes from conversation with Rick B. Recording stored on Dropbox, although my notes are decent.

Patent doesn't prevent people from suing you.

After one year, I lose the right to patent in u.s.

Patent litigation is very expensive.

Avoid making any product claims. 3rd party data is best.

Talk with someone in the business, see what they think. Also they probably have all the network / manufacturing / distribution set up already.

• If they are doing all the work, then they will be the infringer not me.

Making a patented article is something that violates a patent. Even for no profit!

Why is it bad to give official “legal advice”?

Lawyer here.

This is a bit of a misconception. Lawyers can and do give legal advice all the time, and are generally more than happy to provide basic information on legal issues to friends, family, and anyone who might ask. (Though as the only lawyer in my extended family, this can be problematic at times. I mean, what the hell do I know about §4, subsection r(17)(b) of the Tennessee state water usage code, even though for some reason Uncle Jimmy thinks I should? But you get the point.)

The problem arises when you may (or may not) perform some action in reliance on the advice we provide. Lawyers want to make sure that there is a formalized relationship before clients start actively relying on their advice, for a number of reasons: (1) To ensure that the lawyer has all available information before offering advice; (2) to prevent any misconceptions regarding whether the client thinks they are or are not their lawyer; (3) to prevent allegations of malpractice; (4) to protect attorneys' reputations, which is of particular importance in a reputation-driven industry; and (5) to ensure that they are actually allowed to provide formal legal advice in the jurisdiction.

In general, the solution to this (in public forums and for general advice) is for lawyers to provide broad solutions or suggestions on where to find more information. But to answer your question directly, there is no formal prohibition on offering advice, so long as the recipient acknowledges that the advice is merely that: friendly advice, not formal legal services. Because this distinction is easy to misinterpret, however, many lawyers are careful about giving advice publicly, even if they are allowed to.

• https://www.reddit.com/r/explainlikeimfive/comments/328wun/eli5_why_cant_lawyers_give_legal_advice/

Most ethical companies will send you a cease and desist letter.

Why do anything new that isn't different than the competition?

Freedom to operate search is different than patentability search

• Get a legal opinion. An official document. Doesn't shield you from liability. Expensive.

Possibly get some insurance for liability risk.

Rick _

Patent and IP counseling: no one he can specificlaly recommend, but these are the big firms

• Schwabe Williamson and Wyatt
• Marger Johnson
• Kolisch Hartwell
• Klarquist Sparkman
• Blakely Sokalof. Right across the street from Chipotle, near by OGI.

Mainly IP firms.

Associates are $100-$300, partners are $300-500 per hour.

If you're not planning on making money, it's really expensive to spend money for confidence.

It'd be good to talk with a litigation attorney, give me confidence what the likelihood of getting sued vs. just getting a cease and desist letter.

Men in Black 2. Riding by on a bicycles.

Really water resistance.

While a number of videos talk about a quick fix like clear nail polish, I really care about long term performance with many thermal cycles, abrasion, etc.

Back in the old days my father used three methods to coat the boards: – rosin (the violin type) thinned with alcohol and “painted” on the board with a brush – nail polish, regular type – tinning

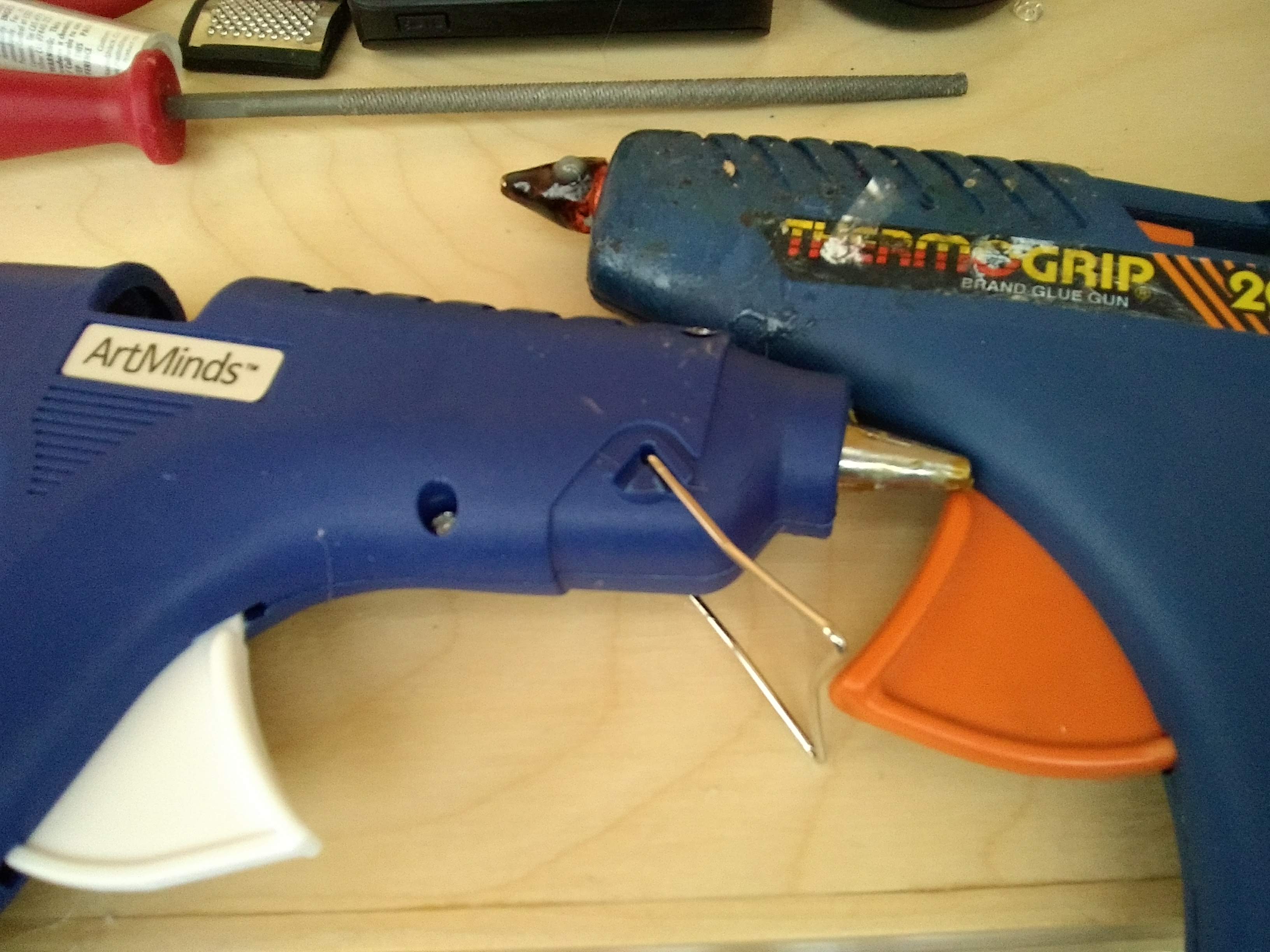

Bad hot glue gun from craft store is on the left. I'm not sure why it doesn't work as well, but the right one (long not sold anymore) is solid, despite being only 20W.

However, once it's applied, hot glue held up well to 5 repeated 140F and 32F cycling of temperature, even the unsanded surface. Would recommend:

• Sanded (preferably rougher?) surface and cleaned afterwards…HOW?
• Don't apply with cold hot melt gun. The hotter the better, I think. More viscous, easier to “wet” and go into grooves and stay there.
• Clamping probably helps too. For uneven surfaces (over cables and such), try using foam to appropriately apply pressure?
• Let cool to a warm temperature to move on to the next thing. The thicker it is, the longer it takes.
  • Try to avoid using while warm though
• Avoid use on wood, as it shrinks and expands over seasons and the hot glue doesn't penetrate into the grain.

Film Canister Style 1	Taking out center created less tension on side, leading to leak

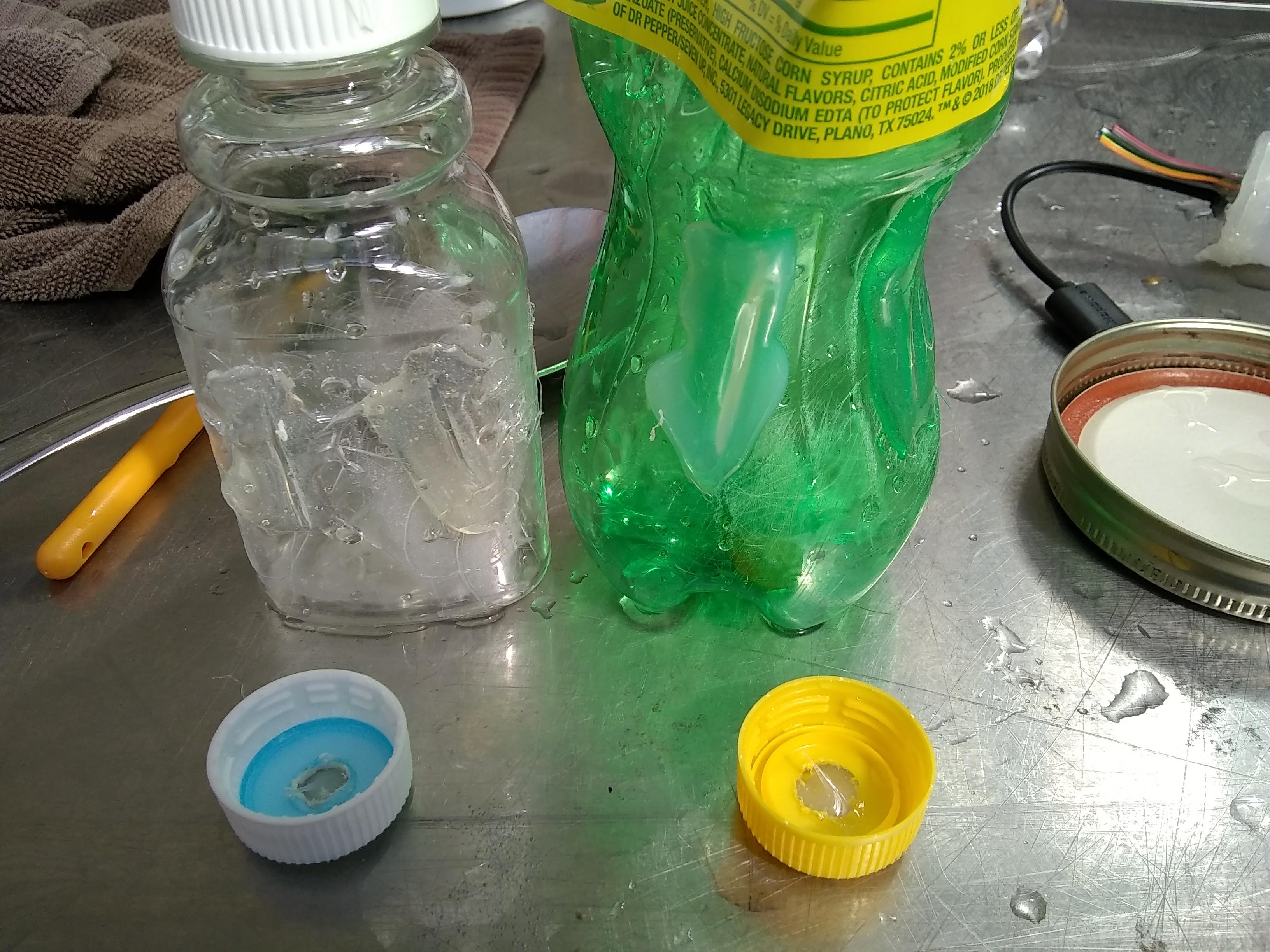

Sealing plastic squeeze things (toothpaste, travel bottles)	* Hard to reseal with soldering iron (too hot), hot glue gun tip (too cold?). Maybe try iron or stove.
Hot Glue	Hot glue make for easy rework, just heat up with hair dryer and jiggle and you're done! Or it's pretty easily rip-offable

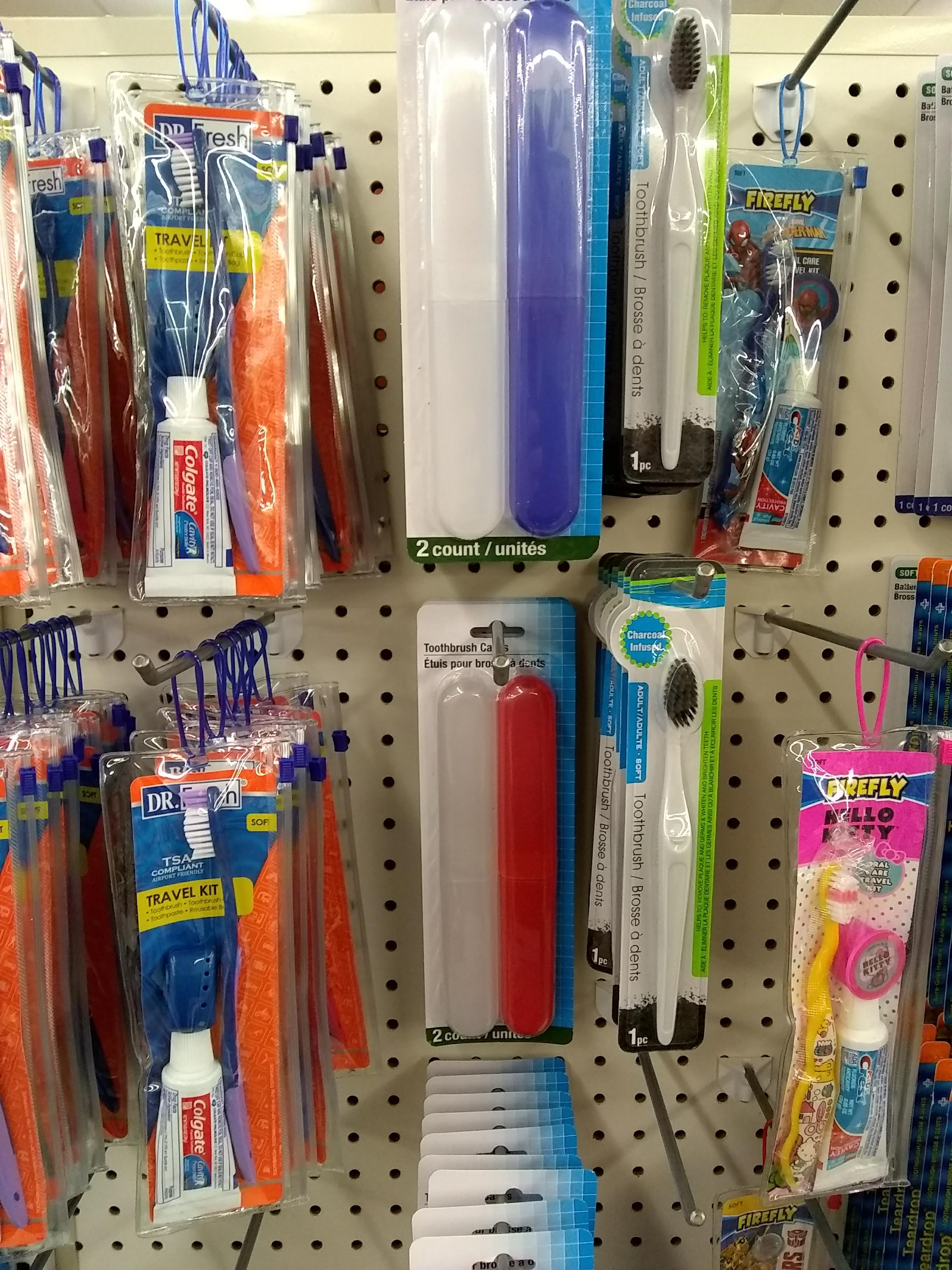

Toothbrush holder	Too small, barely
Travel containers	Generally good, but not clear or too large

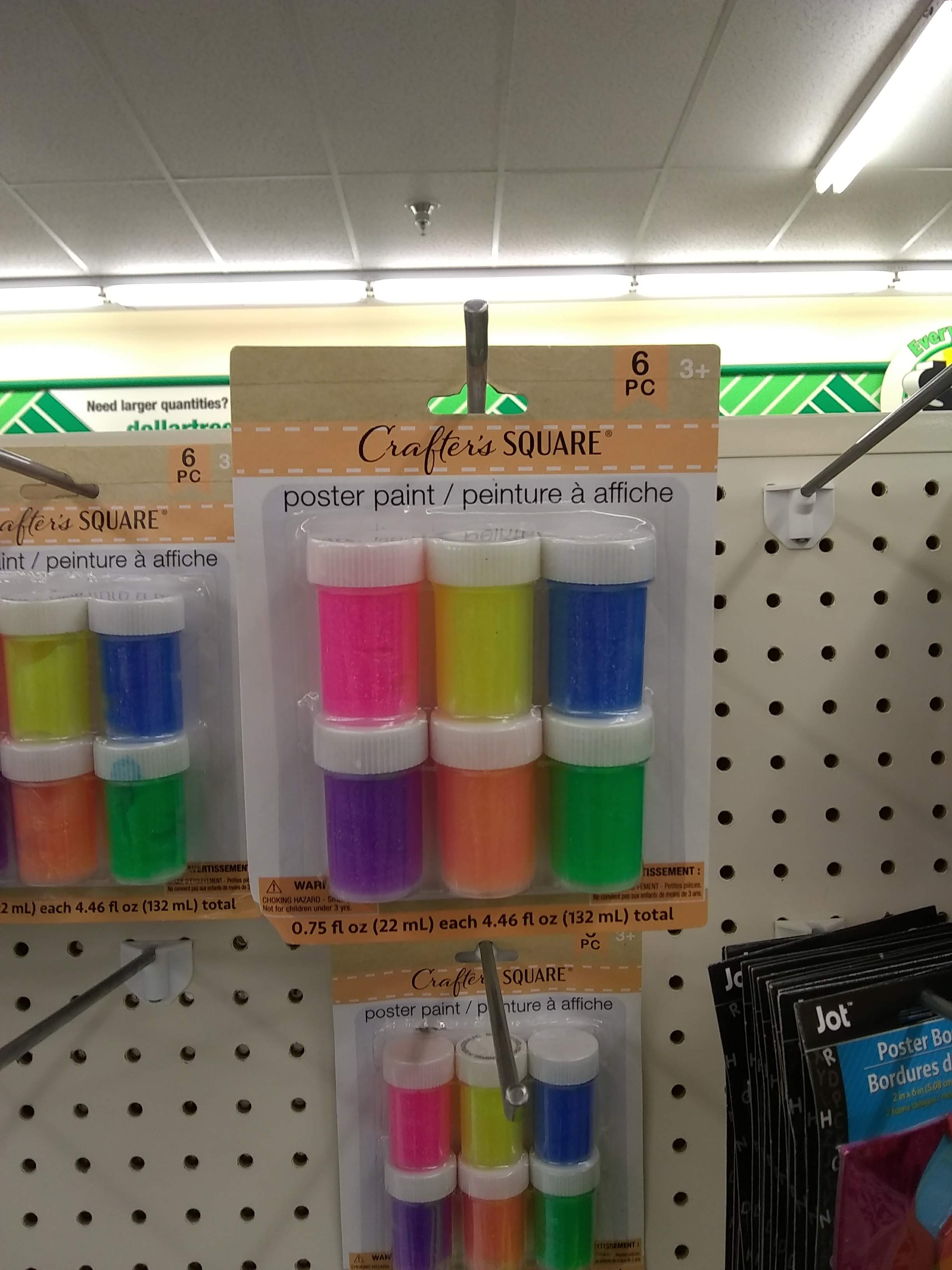

Paint containers	Too small

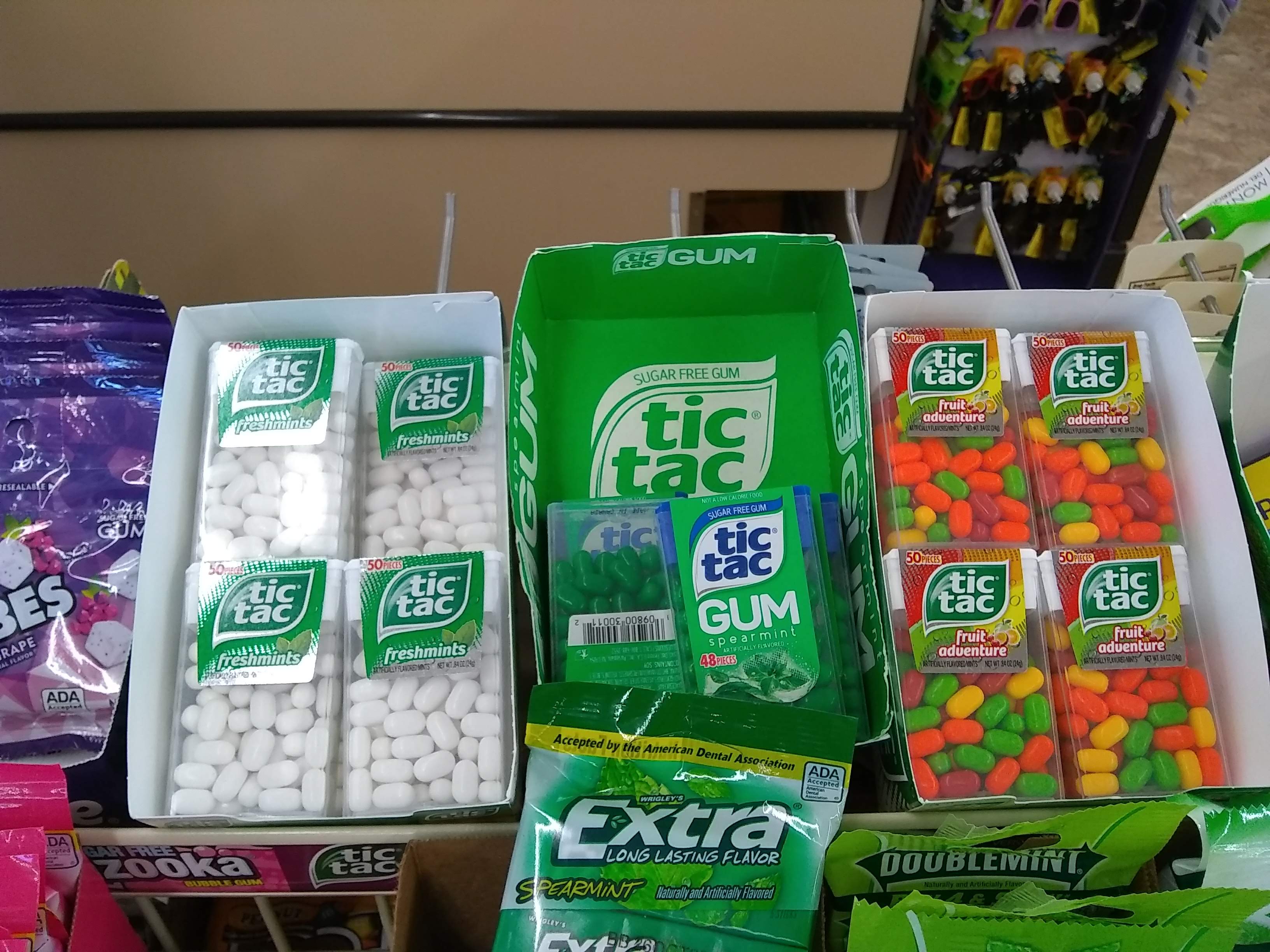

Tic Tac containers	Hard to seal? Good size though
Lotion tubes	Might be good for future / larger projects

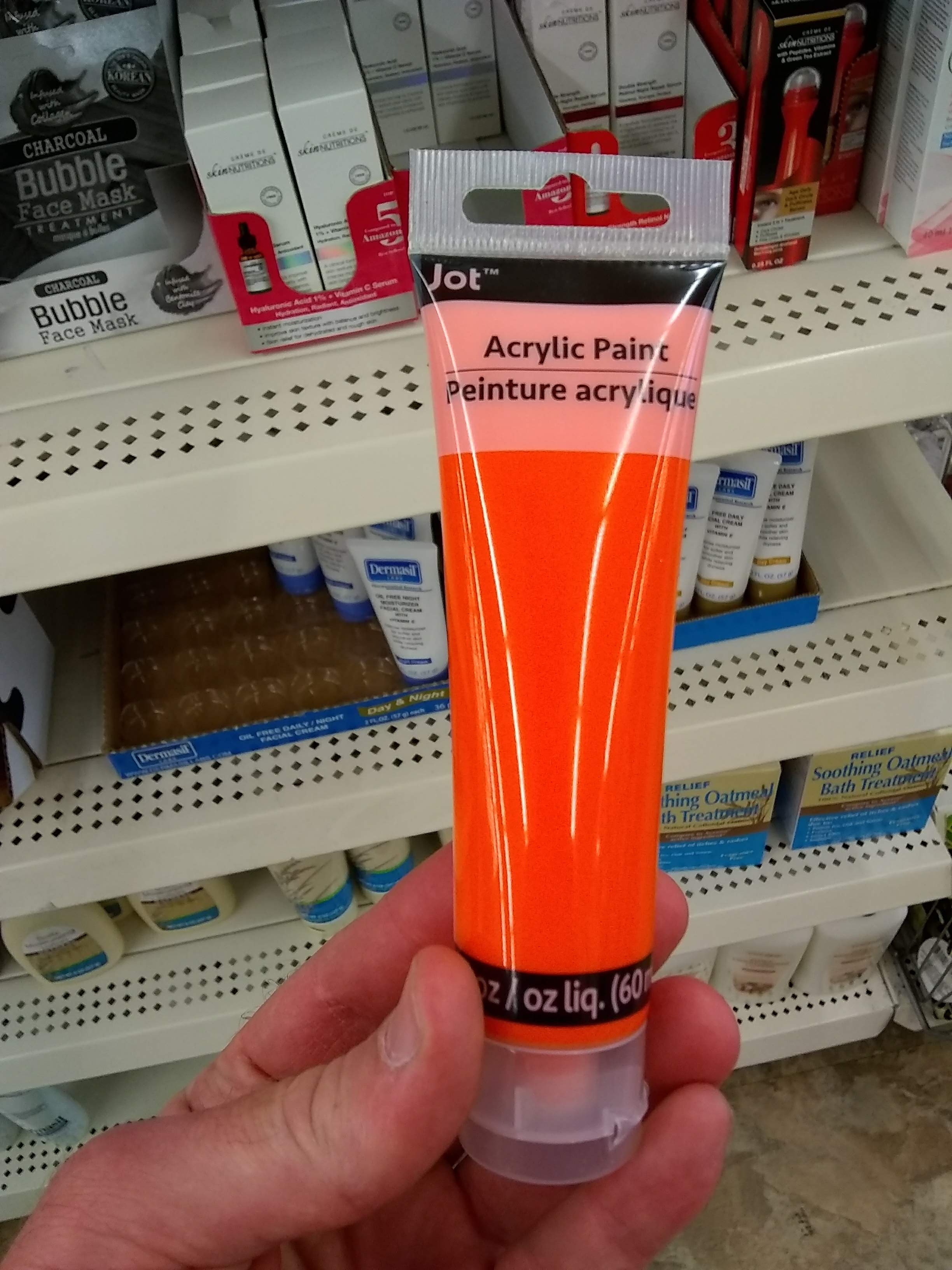

Small paint tube	Hopefully this works well! Just right width and depth, and might be able to squeeze two “cases” out of this.

Simple would be a film canister. $.30 on Amazon in quantity 30. Hot glue / epoxy the sides, maybe fill it in too.. Doesn't need to be underwater.

Don't want conformal coating to get into connectors or buttons, as they need to make electrical connection and can't necessarily scrape off.

Can do friction welding with a dremel and 3d printer rod. Can also do plastic welding with kit at Harbor Freight.

But generally hot glue is surprisingly good, provided you sand/scratch it up plenty.

Not such a great idea. Increases skidding resistance during crash. But on the helmet it's very high up, easy to see.

https://helmets.org/ideal.htm

Silicone led strip on the helmet surface can't break off! Worse than bare helmet foam…

But it should be able to break off with velcro or light hot glue.

I think they'd be open to an email discussion. They clearly have thought a bit about it:

• https://helmets.org/lights.htm
• https://helmets.org/helmetlights.htm

Dynamic setting of array sizes (can probably do in loop() too)

#define NUM_STRIPS 3
#define NUM_LEDS_PER_STRIP 60
#define NUM_LEDS NUM_LEDS_PER_STRIP * NUM_STRIPS

CRGB leds[NUM_STRIPS * NUM_LEDS_PER_STRIP];

void setup() {
  // tell FastLED there's 60 NEOPIXEL leds on pin 10, starting at index 0 in the led array
  FastLED.addLeds<NEOPIXEL, 10>(leds, 0, NUM_LEDS_PER_STRIP);

  // tell FastLED there's 60 NEOPIXEL leds on pin 11, starting at index 60 in the led array
  FastLED.addLeds<NEOPIXEL, 11>(leds, NUM_LEDS_PER_STRIP, NUM_LEDS_PER_STRIP);

  // tell FastLED there's 60 NEOPIXEL leds on pin 12, starting at index 120 in the led array
  FastLED.addLeds<NEOPIXEL, 12>(leds, 2 * NUM_LEDS_PER_STRIP, NUM_LEDS_PER_STRIP);

}

Both the 1 18650 or the 2 X 18650 batteries handled 1.2A fine. They also had a resettable fuse for when 5V shorts to ground.

Whole 5m strip lit up fine, however, I feel like they might be underpowered? Should be more like 6A. Maybe try full white instead of rainbow ;)

However, weird issue with blinking on the LED strip that I'll look into soon.

Still not sure about making in USA or not.

Silkscreen:

• Pin values on top side
• Upper connector orientation
• Dashed outlines of top part of wemos d1 mini board so you know orientation is correct. Also USB connector position

Features:

• Split apart each group of 3 double decker connectors so it's clear they're separate. Makes it harder to solder. Just do a full one, but put a very clear silkscreen with indicators for each group of 3.
• Add extra holes/surface mount pads for ground/5V for additional side stuff? Maybe expose ADC port. Although, those are exposed already. Maybe just line them up on the back or make it easy to cut the traces and “green wire” it to other stuff but use the same connector.

Black color? Extra two days, but looks kinda cool. Maybe purple or something fun instead.

Move connectors further up, can overlap hard .1” connector with USB cable hard connector.

Nickel or gold plated connectors? Nickel is ok

One outstanding property of gold is that it is unreactive and exceptionally resistant to corrosion, only being attacked by a mixture of concentrated hydrochloric and nitric acids. It has far superior corrosion resistance in comparison to copper, brass and even nickel – if you happen to be playing guitar on the surface of Venus then gold-plated jack plugs are definitely the ones to use in this situation.

But gold is also a very soft and expensive metal. What this means in practical terms is that manufacturers deposit only the merest hint of gold plating, just enough to give the impression that the jack plug has a gold-like appearance. It’s so thin that it quickly wears off after just a few insertion/removal cycles of the plug to reveal good old nickel plating beneath. There were genuine technical justifications for plating connectors with nickel, however gold plating serves no practical purpose other than to act as ‘eye candy’.

Web app be like this? https://github.com/jasoncoon/esp8266-fastled-webserver

• Brightness and pattern for sure
• Not sure about color…seems incongruent with pattern, but maybe can customize some patterns.

Really want a momentary switch for horn in front.

• Use with Arduino to limit to 3 second cumulative horn time.
• Can also make momentary by changing state on up and down.
• Need debounce

High current (replacement of light switch):

• Assuming it's also rated at 50V and .5A like Adafruit: https://www.adafruit.com/product/1683
• Then you should be able to use it at lower voltage and higher currents provided you stay under the power rating? (I*V) https://electronics.stackexchange.com/a/53314/71181

Search: https://www.digikey.com/short/zj275t

This one is $3 for 4“X3”. Good enough for now. https://www.digikey.com/product-detail/en/FIT0193/1738-1005-ND/6588427/?itemSeq=322135784.

Eventually want to move to real PCB though for quantity >10.

Weld-On 16/4 is the recommended for PLA and probably most plastics. 16 is the viscous kind, like PVC cement, whereas 4 is watery and flows easily into the cracks needed. Assuming I get to the roto casting stage, I don't actually need this anymore, except for the boxes.

However in a pinch others (including acetone) work decent too: YouTube Link! https://www.youtube.com/watch?v=Mx10ZN9Jigo

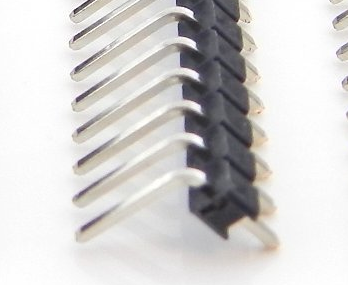

• Low profile .1“ male headers for more flushness and less bending.

Low profile	Not low profile
Adafruit or EMS or Polulu Digikey Search, short post one Digikey	Everyone else. Amazon

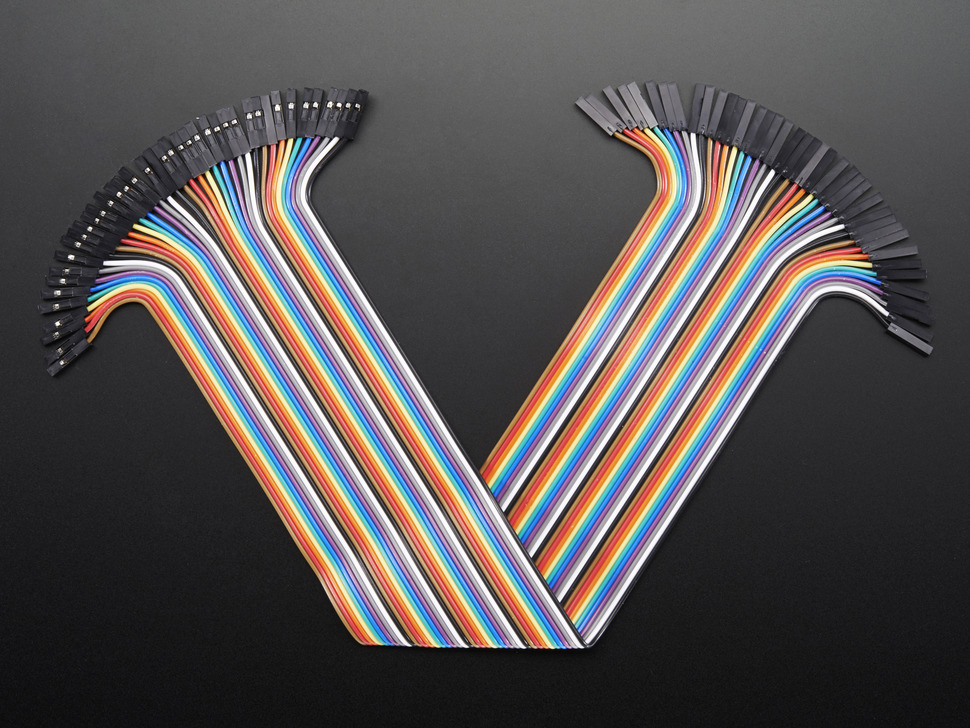

* While not joined at the end, this for $8 is awesome. https://www.adafruit.com/product/793. , also at Digikey: https://www.digikey.com/product-detail/en/adafruit-industries-llc/1949/1528-1960-ND/6827083

Maybe during Covid 19 stuff, just DIY.

• Have wifi come on for first … 1 minute of power on to allow configuration.
• Have wifi password? be set by user? Reset by flashing from computer.

Probably more important to get everything else working first. But…say it was working, then what?

• Configure what strands/objects are where.
• Whole helmet patterns, pre-configured.
• Individual strand patterns, if desired (think heartbeat on the back and something else on top)

• Make sure that FastLED or equivalent is able to use most GPIO pins on board so I don't run out. Only need 2-6 individual ones, can keep power and ground the same.
